Sound Solutions

Concept Audio has developed some new high-quality drivers, including small drivers for built-in ear monitors and big drivers for headphones. As of today, we have obtained more than 30 patents, and about 18 patents are awarded for the drivers developed by our own core technologies.

Dual Dynamic Driver

  • Driver type: dual dynamic driver unit
  • Driver size: 10 mm+BA
  • Frequency: 20 ~ 40kHz
  • Impedance: 10 Ohms at 1k Hz
  • Sensitivity: 92 db +/- 3 dB (1 mW at 1k Hz)
  • Rated power: 1 mW
  • Max power: 5 mW

Features

Dual Dynamic+1 BA Hybrid Driver

  • Driver type: dual dynamic driver unit+balance armature
  • Driver size: 10 mm+BA
  • Frequency: 20 ~ 40kHz
  • Impedance: 10 Ohms at 1k Hz
  • Sensitivity: 92 db +/- 3 dB (1 mW at 1k Hz)
  • Rated power: 1mW
  • Max power: 5 mW
Features

Super Audio Driver

  • Driver type: Dynamic
  • Driver size: 10 mm
  • Frequency response: 20 ~ 40k Hz
  • Impedance: 16 Ohms at 1k Hz
  • Sensitivity: 94 dB +/- 3 dB (1 mW at 1k Hz)
  • Rated power: 1 mW
  • Max power: 5 mW

Features

Dual Bass Driver

  • Driver type: Dynamic
  • Driver size: 10mm
  • Frequency response: 20--20k Hz
  • Impedance: 84 Ohm +/- 15%
  • Sensitivity: 95dB+/-3dB at 1kHz
  • Rated power: 1 mW
  • Max power: 5 mW

Features

Speaker Solutions

Concept Audio has developed some new high-quality drivers, including small drivers for built-in ear monitors and big drivers for headphones.

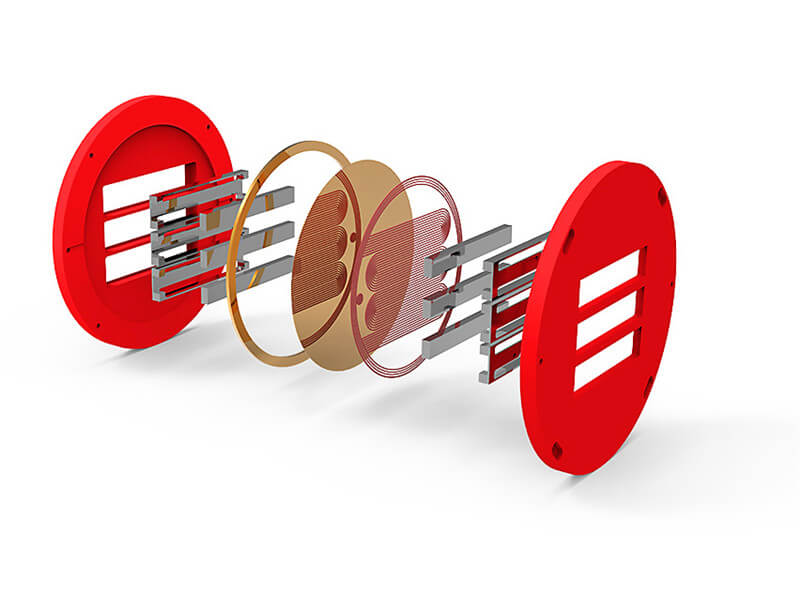

The smallest planar driver in the world.

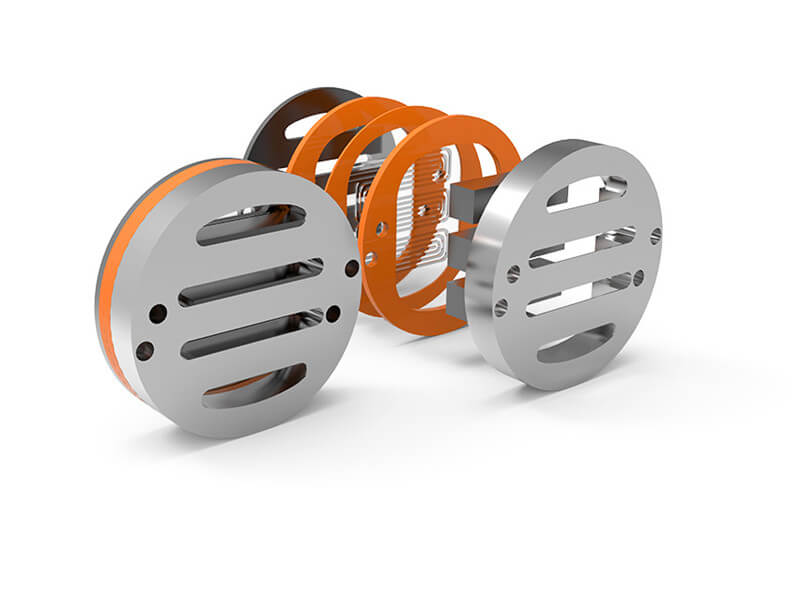

The 14mm planar magnetic driver used for in-ear earphones.

The planar magnetic driver used for over-ear earphones.

The first box dynamic driver in the world.

...
